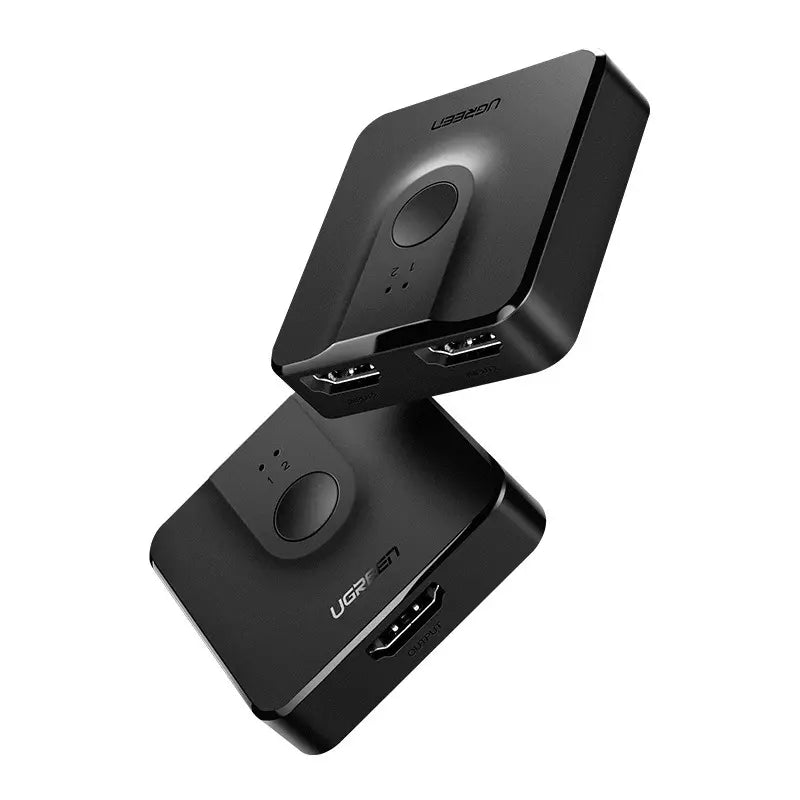

UGREEN 2 In 1 Out HDMI Switcher 4K@60Hz 50966

Key Features:

• Dual Input / Dual Output Options:
  The switcher supports two HDMI inputs (or one HDMI input depending on the setup) and allows you to output to one or two HDMI displays.

  • 1 HDMI source to 2 monitors: You can connect one HDMI source and output to two monitors, but only one screen will display the image at a time (manual selection).

• 4K Resolution Support at 60Hz:
  Enjoy stunning 4K resolution at 60Hz for smooth, high-quality video output. It also supports lower resolutions like 1080p at 60Hz for devices with different display requirements.

• HDMI 2.0 Compatibility:
  Fully supports HDMI 2.0 for high-speed data transfer and features like CEC, EDID, and HDCP 1.4, ensuring compatibility with various devices and high-definition content.

• Long-Distance Transmission:
  The HDMI switcher supports long-distance transmission:

  • 40m at 1080P using HDMI cables
  • 1m 30 AWG cable for input and 1m 30 AWG cable for output (for 4K@60Hz)
  • 12m 26 AWG cable for input and 12m 26 AWG cable for output (for 4K@30Hz)
  • 20m 24 AWG cable for input and 20m 24 AWG cable for output (for 1080P@60Hz)

• Bidirectional Signal Switching:
  This switcher allows bidirectional switching between the signal source and display, so you can easily switch between different inputs and outputs.

• Compact and Easy to Use:
  The UGREEN HDMI Switcher is designed to be compact with a small form factor, measuring L51.5 x W51 x H14.5mm, making it easy to place in any setup.

Specifications:

• Inputs:
  2 HDMI Male or 1 HDMI Male (for HDMI source devices)

• Outputs:
  1 HDMI Female or 2 HDMI Female (for HDMI displays)

• Supported HDMI Version:
  HDMI 2.0 (Supports 3D, CEC, EDID, HDCP 1.4)

• Resolution Support:

  • 4K at 60Hz
  • 4K at 30Hz
  • 1080P at 60Hz

• Transmission Distance:

  • 40m at 1080P using HDMI cable
  • 1m 30 AWG cable for 4K@60Hz input/output
  • 12m 26 AWG cable for 4K@30Hz input/output
  • 20m 24 AWG cable for 1080P@60Hz input/output

• Product Size:
  L51.5 x W51 x H14.5mm

Usage Scenarios:

• Home Entertainment:
  Use this switcher to connect multiple devices (such as gaming consoles, Blu-ray players, and streaming boxes) to a single display or connect one HDMI device to two monitors for viewing in different locations.

• Office/Conference Rooms:
  Ideal for environments where multiple HDMI sources need to be shown on one display or need to toggle between different presentations.

• Gaming:
  Connect your console to multiple monitors and switch between them for an enhanced gaming experience.

Compatibility:

• Works with any HDMI-enabled devices such as TVs, monitors, projectors, set-top boxes, gaming consoles (PS4, Xbox, Switch), Blu-ray players, and more.
